Friday, January 1, 2021

Fabricating trim servo spacer and priming - 3 hours

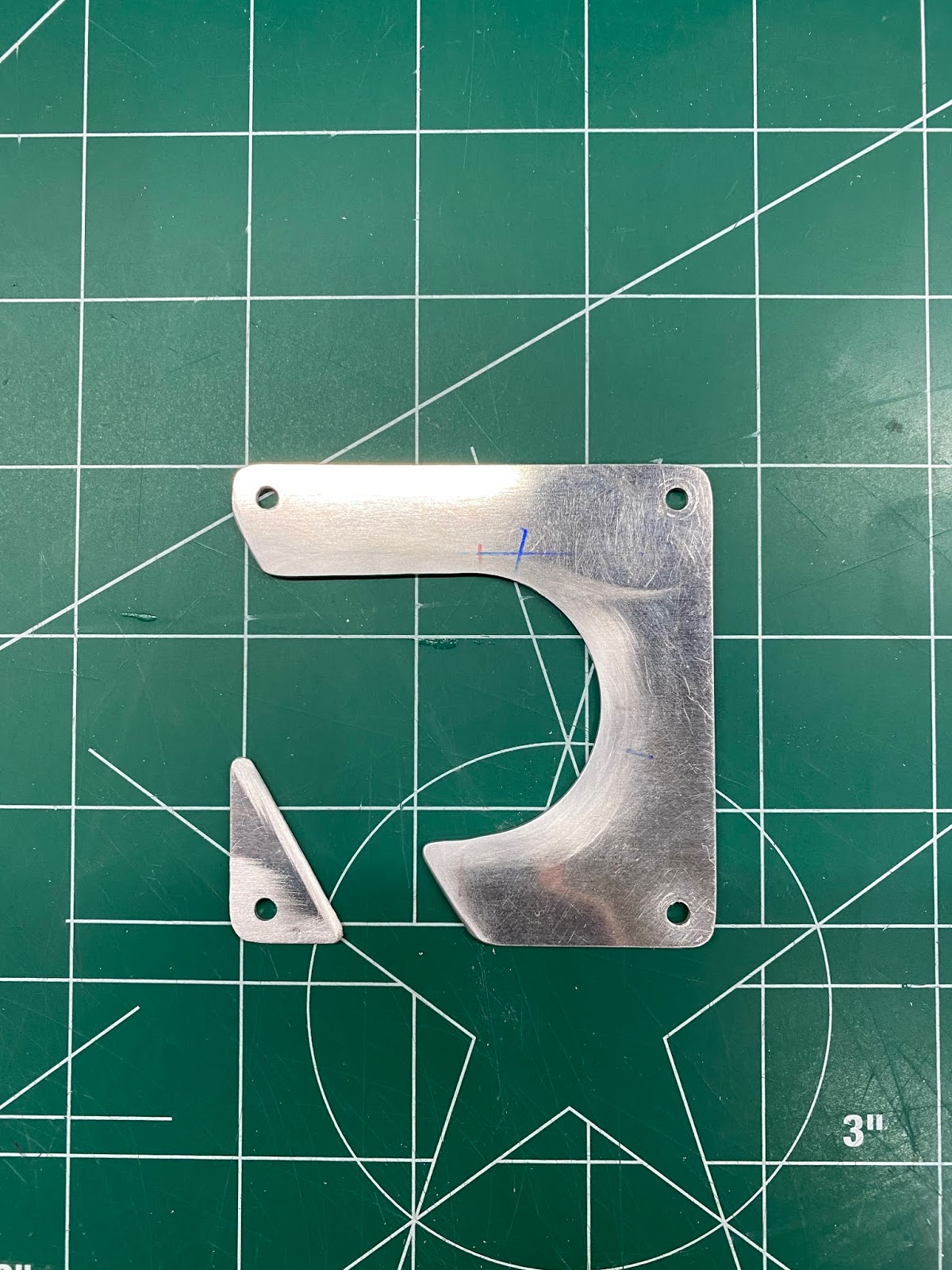

 One of the items on the to-do-list is to make a spacer for the aileron trim servo. The trim servo doesn't sit flush with the seat rib due to fluting on the rib. So I used some 0.063" scrap and traced the servo. I then transferred the fluting line onto the spacer and trimmed accordingly. Since the spacer does not need be full size, I cut out a portion of the middle to lighten it up.



I cleaned up the edges on the F-656 gussets and primed them.
