Saturday, October 16, 2021

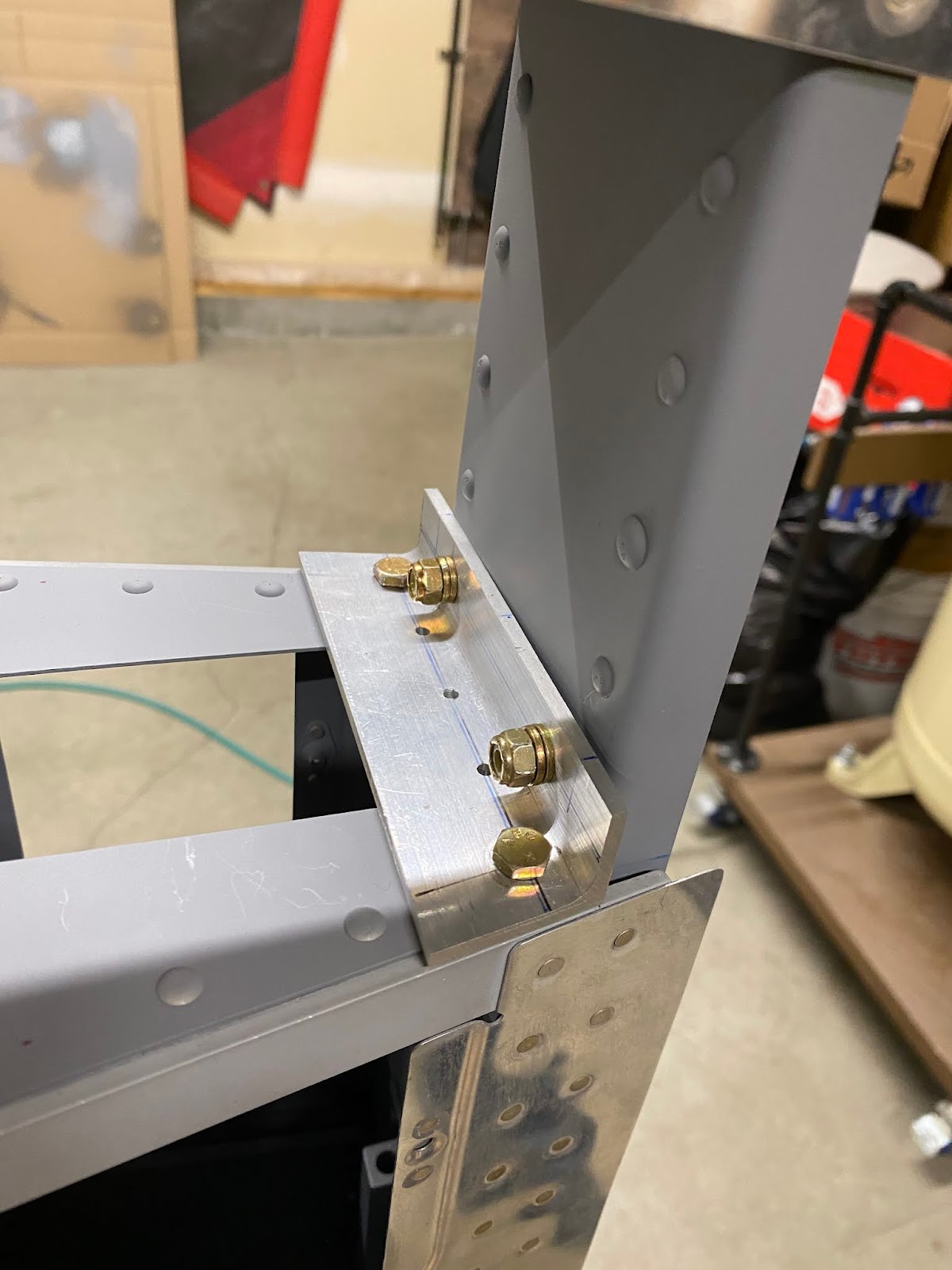

Installing the F-781attach plate and finished drilling the VS - 4 hours

 Started in this morning by preping and priming the F-781 attach plate. After about 3-4 hours of dry time, I decided it was good enough to rivet onto the VS.

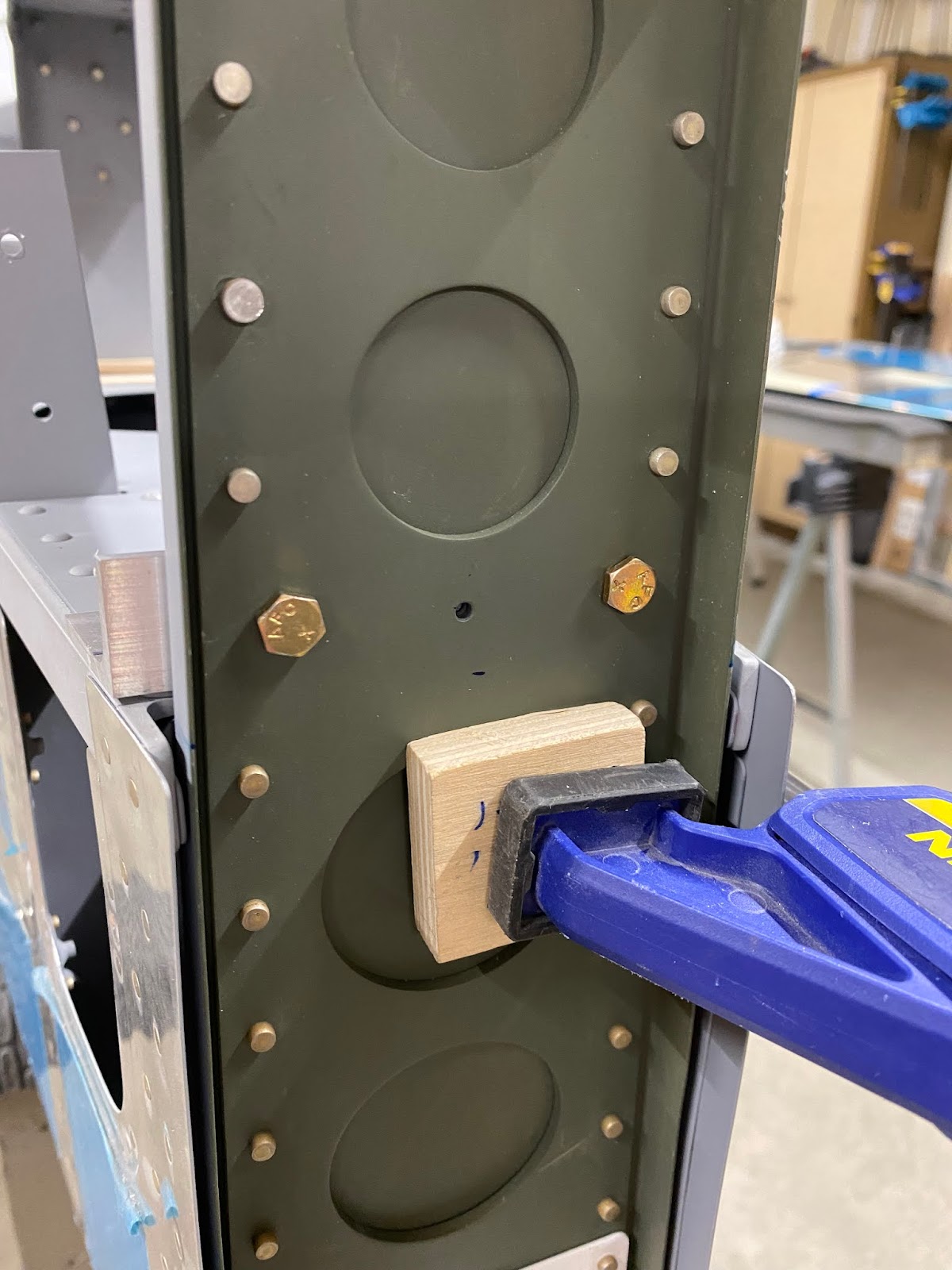

I started to open up the two upper #40 pilot holes in the VS rear spar. Now, here is the part that sucks. Unfortunately I cannot use a drill jig to drill these. Rather than completely disassemble and drill in the press or on the table with a drill jig. I choose to drill them by hand and ream to 3/16" in place. And the bolts are a tiny bit loose. Especially the right one. Crap






So talking to Vans Technical support, we determined that the best course of action is to use an NAS6603-4X bolt for this right hole. Its an 1/64" oversize and will allow me to hand ream the bolt for a perfect and snug fit. We also discussed using NAS close tolerance bolts for the left hole in lieu of the AN3 bolt as the NAS bolts are consistently just a couple thousandths larger in diameter than AN3 bolts and have a tenancy to snug up some of these areas where bolts easily slip into holes.

Moving onto the elevators, I need to start drilling the elevator horns. Fortunately I have not cut the ends of the HS stabilizer allowing for a prefect alignment of the elevators


One item that I want to do is install nutplates in the elevator tips which will allow me the ability to install extra weight in the elevator tips if needed in future balancing. The existing tooling holes are perfect for an AN3 bolt.

Next I temporarily installed an elevator in the HS and now started to scratch my head on how best to drill the pivot hole. I need a 1/4" bushing to protect the bearing. A trip to home depot was a bust, however I stopped in at Hobby Wholesale and they have a whole selection of various brass tubes. Sure enough they have a 1/4" brass tube that will allow me to drill a pilot hole.
